Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone

Name: AutomaticManual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone
Brand: Sinolion
Price: 6 USD

Wholesale Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone from china suppliers

Applicable Industries : Machinery Repair Shops

Showroom Location : Mexico, Japan, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Type : Ball Mill

Motor Type : AC Motor

Capacity(t/h) : 0.65-35

Place of Origin : Henan, China

Brand Name : Sinolion

Dimension(L*W*H) : depend on models

Weight : 3600 KG

Warranty : 1 Year

Application : gold ore iron copper, quartz limestone,clinker,cement,chromite,A

Grinding way : wet type or dry type or batch type

Operation : automatic or manual

Grinding material : calcium carbonate, calcite, dolomite,bauxite,aragonite

Including : gearbox, gear, pinion, liner, manual, bearing, specifications

Spare parts : liner, grinding balls, grinding media

Price : $6,500.00/sets 1-1 sets

MOQ : 1 unit

Contact Now

Products Description

Mineral Grinding Specification gold ore quartz limestone wet flotation line ball mill machine

Energy saving small ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. such as cement, fire-proof materials, aluminum soil, the emery, glass raw materials, building sand, stone materials, metallurgical slag.

Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone

Working principle of energy saving small ball mill

Horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

Main technical parameter

Model	Cylinder rotating(r/min)	Grinding media loading(t)	Feed Size(mm)	Discharge Size(mm)	Capacity (t/h)	Power(kw)	Weight(t)
Φ900*1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Φ900*3000	38	2.51	≤20	0.075-0.89	1.1-3.5	22	4.6
Φ1200*2400	32	3.8	≤25	0.075-0.6	1.5-4.8	30-45	12.5
Φ1200*3000	32	5	≤25	0.074-0.4	1.6-5	30-45	12.8
Φ1200*4500	32	7	≤25	0.074-0.4	1.6-5.5	55	13.8
Φ1500*3000	27	8	≤25	0.074-0.4	2-5.8	75-90	17
Φ1500*4500	27	14	≤25	0.074-0.4	3-6.5	90-110	21
Φ1500*5700	27	15	≤25	0.074-0.4	3.5-8	110-132	24.7
Φ1830*3000	24	11	≤25	0.074-0.4	4-10	132-180	28
Φ1830*6400	24	23	≤25	0.074-0.4	6.5-15	210	34
Φ1830*7000	24	25	≤25	0.074-0.4	7.5-17	210-245	36
Φ2200*5500	21	30	≤25	0.074-0.4	10-22	370	48
Φ2200*6500	21	31	≤25	0.074-0.4	14-26	380	50
Φ2200*7500	21	33	≤25	0.074-0.4	15-29	475	56
Φ2400*7000	21	39	≤25	0.074-0.4	16-33	475	69
Φ2400*11000	21	51.5	≤25	0.04-0.08	16-35	630	99
Φ2700*3600	21	39	≤25	0.074-0.4	16-29	475	74
Φ2700*4500	21	43.5	≤25	0.074-0.4	20-35	500	80

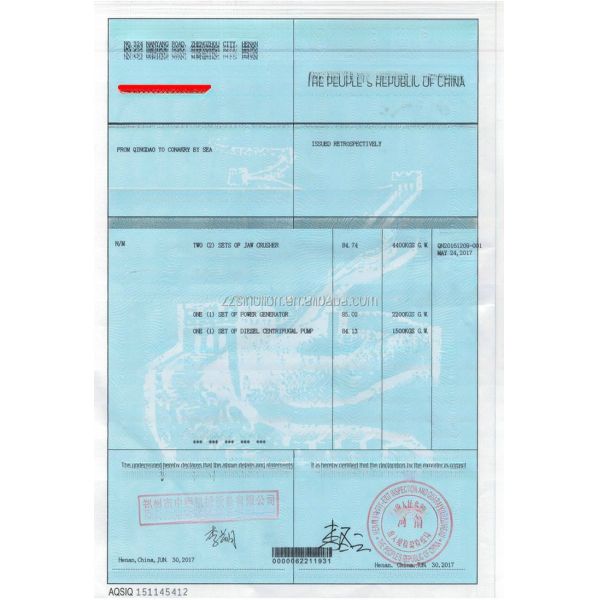

Certifications

Detail information

Product packaging

Company Profile

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc

Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone Images
